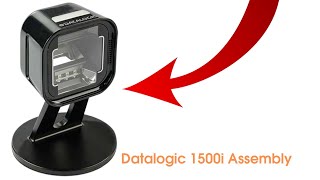

MAGELLAN™ 1500i
TECHNICAL SPECIFICATIONS
DECODING CAPABILITY
1D / Linear Codes  :
Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes  :
Aztec Code, Data Matrix, MaxiCode, QR Code
Postal Codes :
Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post
Stacked Codes :
GS1 DataBar Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; Micro PDF417, PDF417
Digital Watermarks :
Optional support for Digimarc® Barcodes/GS1 DW Code

ELECTRICAL
Current  :
Operating (Typical): < 500 mA
Standby/Idle (Typical): < 300 mA
Input Voltage  : 5 VDC +/- 10%

ENVIRONMENTAL
Ambient Light : 0 to 86,100 lux
Drop Resistance  :  Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface
ESD Protection (air discharge)  : 25 kV
Humidity (Non-Condensing)  : 5 - 95%
Particulate and Water Sealing  : IP52
Temperature :  Operating: 0 to 40 °C / 32 to 104 °F
Storage/Transport : -40 to 70 °C / -40 to 158 °

INTERFACES
Interfaces :  USB Keyboard; USB COM; OEM (IBM) USB; RS-232

PHYSICAL CHARACTERISTICS
Colors Available : Black; White
Dimensions :
Tilting Riser : 6.0 x 7.5 x 13.8 cm / 2.4 x 3.0 x 5.4 in
Fixed Riser : 6.0 x 7.5 x 10.6 cm / 2.4 x 3.0 x 4.2 in
Wall Mount : 6.0 x 7.5 x 8.4 cm / 2.4 x 3.0 x 3.3 in
Weight :
Tilting Stand : 240 g / 8.5 oz
Fixed Riser : 164 g / 5.8 oz
Wall Mount : 170 g / 6 oz

READING RANGES
Typical Depth of Field
Printing resolution, symbol length, scan angle, contrast and ambient light dependent.
1D / Linear Codes
5 mils: 2.5 to 9.0 cm / 0.9 to 3.5 in
7.5 mils: 0 to 17.0 cm / 0 to 6.6 in 10 mils: 0 to 21 cm / 0 to 8.2 in
13 mils UPC: 0 to 25.0 cm / 0 to 9.8 in
20 mils: 1.0 to 30.0 cm / 0.4 to 11.8 in
Optional Codes
6.5 mils PDF: 2.5 to 11.0 cm / 0.9 to 4.3 in
13 mils Data Matrix: 0 to 17.0 cm / 0 to 6.7 in
16 mils PDF: 0 to 20.0 cm / 0 to 7.8 in
24 mils Data Matrix: 0 to 25.0 cm / 0 to 9.8 in

SAFETY & REGULATORY
Agency Approvals :
The product meets necessary safety and regulatory approvals for its intended use.
The Quick Reference Guide for this product can be referred to for a complete list of certifications.
Environmental Compliance : Complies to China RoHS; Complies to EU RoHS
LED Classification :  EN62471 and IEC62471 Lamp Illumination

UTILITIES
Scanner Configuration  : Scanalyzer can be used for scanner configuration. Available for download at no charge.
OPOS / JavaPOS  : JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at no charge.
Remote Host Download : Lowers service costs and improves operations.
