Zebra ZC300 Card Printer ราคาพิเศษ

เครื่องพิมพ์บัตร พลาสติก พนักงาน สมาชิก ZEBRA ZC300

Card Printer ZC300 by Zebra

Zebra ZC300 card printerตอบสนองงานพิมพ์บัตร ไม่ว่าคุณจะต้องพิมพ์บัตรประเภทใด - จากข้อมูลประจำตัวและการเข้าถึงการเป็นสมาชิกกิจกรรมและบัตรเครดิต / เดบิต ZC300 จะช่วยให้คุณทำได้ดีขึ้นเร็วขึ้นและง่ายขึ้น วิศวกรรมที่สง่างามช่วยขจัดจุดเจ็บปวดที่เกี่ยวข้องกับการพิมพ์การ์ดได้เกือบทั้งหมด ผลลัพธ์ที่ได้คือความเรียบง่ายของปุ่มกดไม่ว่าคุณจะพิมพ์อะไรก็ตามไม่ว่าคุณจะพิมพ์อะไรก็ตามไม่ว่าจะเป็นแถบแม่เหล็กด้านเดียวหรือสองด้าน(Option)หรือการ์ดแบบไม่สัมผัสสีหรือขาวดำ และด้วยการออกแบบที่ล้ำสมัยZebra ZC300จึงเหมาะกับทุกที่คุณจึงสามารถพิมพ์การ์ดได้อย่างปลอดภัยทุกที่ที่คุณต้องการ

 หน้าจอLEDของZebra ZC300 แสดงเป็นไอคอนภาพเคลื่อนไหวและข้อความที่ผ่านการทดสอบอย่างดีที่ใช้งานง่ายในภาษาของคุณเองช่วยให้ผู้ใช้ทุกคนเข้าใจได้ง่ายว่าเครื่องพิมพ์ต้องการอะไรและใช้งานฟังก์ชันต่างๆได้อย่างไรรวมถึงวิธีการแก้ไขปัญหาเครื่องพิมพ์ติด ริบบิ้นใส่ริบบิ้นหรือการ์ดและอื่น ๆ

 ทางบริษัทได้ทำการจัดจำหน่าย สินค้าเครื่องพิมพ์บาร์โค้ด เครื่องพิมพ์บาร์โค้ด เครื่องอ่านบาร์โค้ด เครื่องพิมพ์ใบเสร็จขนาดพกพา คอมพิวเตอร์ขนาดพกพา เครื่องพิมพ์บัตร และอุปกรณ์การพิมพ์ ทั้งสติกเกอร์ม้วนสำหรับการพิมพ์บาร์โค้ด ผ้าหมึกสำหรับเครื่องพิมพ์สติกเกอร์ ที่มีคุณภาพราคาที่เหมาะสม



 *หมายเหตุ คุณสมบัติเครื่องอาจมีการเปลี่ยนได้ทั้งนี้กรุณาติดต่อทางบริษัทฯ เพื่อความถูกต้องต่อไป*

คุณสมบัติเบื้องต้น Zebra ZC300


 Zebra ZC300 Card Printer
 เครื่องพิมพ์บัตรพลาสติก บัตรพนักงาน ซีบร้า
 ความละเอียด : 300 dpi (11.8 dots/mm) print resolution
 การพิมพ์: Single-sided or dual-sided
 ความเร็วในการพิมพ์  สี 200 CPH  สีดำ 900 CPH  Single-sided
 ถาดบรรจุบัตร: 100 card covered feeder (30 mil)
 การปรับผ้าหมึก : Auto calibration of ribbon
 การเชื่อมต่อ :  USB connectivity  LAN
 ทนอุณหภูมิ : 59° F (15° C) to 95° F (35° C)
 ขนาด :  10.2" x 6.2" x 15.1" (258mm x 157mm x 383mm)
 น้ำหนัก 4 KG

คุณสมบัติหลัก Main specification ZC300 Card Printer

ZC300 CARD PRINTER SPECIFICATIONS

Standard Features

  • 300 dpi (11.8 dots/mm) print resolution
  • 2 GB flash memory
  • Image size: 1006 x 640 pixels
  • Auto calibration of ribbon
  • USB 2.0 and Ethernet 10/100 connectivity
  • 100 card capacity auto-adjusting input hopper (30 mil)
  • 100 card capacity output hopper (30 mil)
  • Manual card feeding capability with LED bezel
  • Graphical color LCD
  • 3 Tricolor printer status indicator lights
  • Kensington® secure lock slot
  • Print Touch NFC tag for online printer help and documentation access
  • Printer host authentication
  • Data encryption
  • Two-year unlimited warranty on printer and printhead

Printing Specifications

  • Dye-sublimation thermal transfer direct to card print method
  • Full-color or monochrome printing
  • Single and dual-sided printing
  • Edge-to-edge printing on standard CR-80 media
    Printing throughput (cards per hour) based on batch printing with USB connectivity. Times may vary depending on the computer configuration.
  • 900 cards/hour single sided monochrome
  • 200 cards/hour single-sided YMCKO
  • 140 cards/hour dual-sided YMCKOK
  • 450 cards/hour dual sided monochrome

Media Specifications

Supplies Specifications:
NOTE: The ZC300 printer is designed to work only with Zebra genuine ribbons.

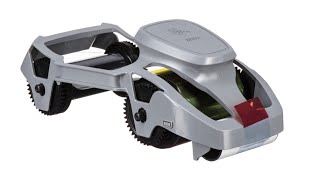

Ribbons are included in a simple-to-load recyclable cartridge.

Ribbon Description  : Cartridge Image Count
YMCKO* : 200
YMCKO*  : 300
YMCKOK* : 200
½ YMCKO* : 400
½ YMCKOKO*  : 250
KrO*  : 700
KdO*  : 700
Black Monochrome*  : 2000
Black Monochrome  : 1500
White Monochrome*  : 1500
Red Monochrome  : 1500
Blue Monochrome  : 1500
Gold Monochrome  : 1500
Silver Monochrome  : 1500

*Zebra intelligent technology automatically detects and authenticates ribbon

  • Cleaning roller is included with each ribbon
  • Two available cleaning kit options: your choice of two (2) or five (5) isopropyl alcohol cleaning cards (1,000 images/card)

Card Compatibility:
NOTE: For optimum print quality and printer performance, use of Genuine Zebra supplies is recommended.

  • Card Thickness: 10-40 mil*
  • Card Size: CR80 ISO 7810 ID-1 format, CR79*
  • Card Material: PVC and PVC composite
  • Adhesive back and writable back cards
  • Transparent cards*

*Note: Spot color or monochrome printing recommended only on >20 mil thick cards, CR79 cards, and transparent cards.

Operating Characteristics

Operating Temp. : 59º F to 95º F/15º C to 35º C

Storage Temp. : 23º F to 158º F/-5º C to 70º C

Operating Humidity : 20% to 80% non-condensing

Media Storage
— Temperature: 41º F to 77º F/5º C to 25º C

— Humidity: 35% to 65% non-condensing

Electrical

Auto-switching single-phase AC power

Operating range: 90-132VAC and 190-264VAC RMS

Frequency range: 47-63 Hz

FCC Class A

Physical Characteristics
Dimensions
Single Sided
10.2 in. H x 6.2 in. W x 15.1 in. D
258 mm H x 157 mm W x 383 mm D
Dual Sided
10.2 in. H x 6.2 in. W x 18.4 in. D
258 mm H x 157 mm W x 468 mm D

Weight
Single Sided8.8 lbs (4.0kg)
Dual Sided9.7 lbs (4.4 kg)

Communications and Interface Capabilities

USB 2.0 : Standard

Built-in 10/100 Ethernet : Optional

802.11ac : Optional

Encoding Options and Specifications

Magnetic stripe encoder — ISO 7811 (new and pre-encoded; tracks 1, 2, and 3; high and low coercivity; stripe down and stripe up with duals-sided printers) *

  • Third party contactless encoder integration kit (ZIP Pocket)*

 *Field upgradeable options

Printer Drivers

Microsoft Windows Certified

Windows Server 2008 (32 and 64 bit),
Windows 7 (32 bit and 64 bit)
Windows 8 and Windows 8.1
(32 bit and 64 bit compatible)
Windows Server 2012 (64 bit)
Windows 10 (32 bit and 64 bit)
Windows Server 2016

Windows drivers include:

  • Color coded printer status indicators for the operator
  • Black panel extraction and controls for specialty ribbon panels with image preview
  • Configuration utility to limit access by operators to change image quality and printer settings
  • Advanced printer configuration, security settings and diagnostics capabilities

Linux : Ubuntu 16..X (64 Bit)

AppleMAC : OS X 10.13.X (64 bit)

Additional Optional Features

  • Card flipper for dual-sided printing*
  • 10 card reject bin is standard with dual-sided printers*
  • Lockable enclosure*

*Field upgradeable options

Print DNA

Multiplatform Software Development Kit (SDK)

  • Windows C#/.Net and Java Printer Software Development Kit (SDK)
  • One SDK supports Android, Java and Windows environments
  • Easily build card-printing apps with complete control over print functionality from Windows, Linux, Mac OS and Android environments
  • Enable card printing from Android mobile devices
  • Incorporate encryption and host authentication (Windows only)
  • Includes documentation and source code examples


CardStudio
A simple-to-learn and feature-rich card design software that makes it easy to design loyalty cards, gift cards, ID cards and more.

Print Touch
With a single tap, you can use Android-based mobile devices to access how-to and troubleshooting information to help keep printers up, running and available.

Printer Profile Manager Enterprise (PPME)
PPME facilitates the centralized control and management of a large number of Card printers via an intuitive Web interface. This application makes it easy to navigate through all the Card Printer settings and quickly create your printer profiles with just a handful of ‘clicks’. Update and manage networked Enterprise Zebra Link-OS printers from a single console automatically with a direct encrypted connection to protect sensitive data.

About Print DNA

Print DNA propels your Zebra Link-OS for Card printers into a class of their own, providing Zebra-only software tools that make life easier for everyone who touches your printers, from printing to printer management and application development.
