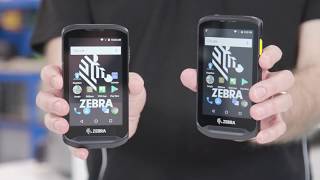

Physical Characteristics Mobile computer TC25

Dimensions
5.27 in. L x 2.82 in. W x .63 in.
134 mm L x 73.1 mm W x 16 mm D
Weight  6.88 oz./195 g
Display   4.3 in. color WVGA (800x480); LED backlight; Corning Gorilla Glass
Imager Window              Corning Gorilla Glass
Touch Panel      Capacitive Touch Panel; multi-touch
Power
Non-removable / serviceable
Rechargeable Li-Ion: standard capacity, 3000mAh
Charge in under 4 hours (10 hours = 1 shift)  RTC backup
Expansion Slot  One 128GB micro SD slot
SIM       1 Nano SIM slot
Network Connections   1 USB OTG - host/client (Type C connector)
Notifications     Audible tone, multi-colored LEDs, vibration
KeypadOn-screen keypad
Audio    Speaker - 1 Watt (94dBA), Voice support (Internal speaker/microphone)  Two (2) microphones
Buttons                :  Scan on each side, Volume Up/Down, Power, push-to-talk (PTT) keys

Performance Characteristics

CPU       QCOM MSM8937® 64-bit 8-Core, ARM® Cortex A53 1.4GHz, 512KB L2 cache, power-optimization
Operating System           Android Oreo 8.1
Memory             2GB RAM/16GB Flash memory
Security                 Verified Boot

User Environment

Operating Temperature              :  14° F to 122° F / -10° C to 50° C
Storage Temperature  :  -40° F to 158° F / -40° C to 70° C
Drop Specifications :  Multiple 4 ft./1.2 m drop to tile over concrete per MIL-STD 810G at room temperature
Tumble Specifications  :  300 tumbles, 1.6 ft./0.5 m
Sealing  :  IP65
Vibration  :  4G peak, 5Hz to 2kHz, 1 hour duration per axis
Thermal Shock  :  -40°C to 70°C rapid transition 10 cycles: (1 cycle = 1.25 hours at -40°C and 1.25 hours at 70°C)
Electrostatic Discharge (ESD)  :  +/-15kv Air, +/-8kv contact, +/-8kv charge body

Interactive Sensor Technology (IST)

Accelerometer (3-axis), ambient light sensor, proximity sensor

Data Capture

Scanning  :  SE2100 1D/2D imager , SE4710 1D/2D imager

Rear Camera  :  8MP autofocus color camera with flash

Wireless WAN Data & Voice Communications

Radio Frequency Band

TC25 Americas:

LTE: B2, B4, B5, B12, B17

WCDMA: B2, B4, B5

GSM: 850,900,1800,1900

TC25 Rest Of World:

LTE: B1, B3, B7, B8, B20, B28

WCDMA: B1, B5, B8

GSM: 850,900,1800,1900

TC25 China:

LTE FDD: B1, B3

LTE TDD: B39, B40, B41

WCDMA: B1, B8

TDSCDMA B34, B39 (Diversity not supported)

GSM: 900,1800

Voice Communications

Workforce Connect Push-to-Talk (PTT) Express (Integrated complimentary software application for instant PTT walkie-talkie style calls inside the four walls).

Workforce Connect Push-to-Talk (PTT) Pro (Optional easy-to-deploy subscriptions service that provides instant PTT walkie-talkie style calls inside and outside the four walls).

 GPS       GPS with A-GPS (Glonass, BeiDou)

Wireless LAN

WLAN Radio      802.11a/b/g/n/ac/d/r/h/i IPv4, IPv6

Data Rates
2.4 GHz: 20 MHz, 40 MHz
5 GHz: 20 MHz, 40 MHz, 80 MHz

Operating Channels
2.4 GHz (channels 1-13; 1-11(US))
5 GHz (channels 36-48, 52-64, 100-144, 149-165)

Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency.

Security and Encryption
WPA/WPA2 (PSK & Enterprise 802.1x); EAP-TTLS; PEAPv0-MSCHAPv2; EAP-TLS

Certifications    802.11a/b/g/n; WPA; WPA2

Fast Roam          802.11r

Wireless PAN

Bluetooth          Bluetooth 4.2 BLE
